What is a Yagi Antenna: Understanding How It Works

A Yagi is a type of directional antenna commonly used for ham radio and other wireless communications. It’s built around a long, central support (called a boom) with a series of metal rods: one powered “driven element,” a reflector element behind it, and one or more directors in front. These elements work together to focus radio signals from a specific direction, boosting reception and transmission strength while reducing unwanted noise and interference from other angles.

What is a Yagi?

A Yagi antenna, also known as a Yagi-Uda antenna, is a directional antenna consisting of a driven element, reflector, and one or more directors arranged on a single boom. It is widely used for applications requiring high gain and directionality, such as amateur radio, television reception, and satellite communication.

• Driven Element: The active component.

• Reflector: Increases signal focus by reflecting signals forward.

• Directors: Enhance directionality and gain. No limit of directors can be added increasing gain and directivity.

History of the Yagi

The Yagi antenna, commonly referred to as the Yagi, was invented by Japanese engineer Shintaro Uda and brought to global attention by his colleague Hidetsugu Yagi in the 1920s. This innovative design, officially called the Yagi-Uda antenna, gained recognition for its straightforward construction and exceptional directional gain, making it a staple in applications ranging from amateur radio to television broadcasting. Its combination of a driven element, reflector, and directors revolutionized antenna design, offering a high-performance yet cost-effective solution for directional signal transmission and reception.

Introduction to Yagi Antennas

A Yagi antenna is a type of directional antenna that is widely used for various applications, including television broadcasting, radio communication, and wireless networking. Known for its simplicity and cost-effectiveness, a Yagi antenna works by focusing radio waves in a specific direction, thereby increasing signal strength and quality. This makes it an ideal solution for improving reception and transmission in areas with weak signals or obstructions. Yagi antennas are commonly installed in fixed locations such as homes, offices, and commercial buildings, and are particularly effective for long-distance communications. By concentrating the signal in one direction, Yagi antennas can significantly enhance both the clarity and reach of the transmitted signals.

What is a Yagi? Overview and Modern Developments

What is a Yagi? A Yagi antenna, commonly referred to simply as a "Yagi," is one of the most widely used directional antennas in amateur radio, television, and other communication systems. It was invented by Japanese engineers Hidetsugu Yagi and Shintaro Uda in the 1920s. Known for its simplicity and effectiveness, the Yagi antenna has evolved into a key tool for optimizing signal strength and minimizing interference.

The core principle of the Yagi antenna is to enhance the performance of a basic dipole antenna by adding additional elements. These additional elements allow the antenna to "focus" radio frequency (RF) energy in a specific direction, significantly increasing both the strength of transmitted signals and the clarity of received signals.

History and Development of Yagi Antennas

The Yagi antenna, also known as the Yagi-Uda antenna, was invented in the 1920s by Japanese engineers Hidetsugu Yagi and Shintaro Uda. This groundbreaking invention revolutionized the field of radio communication by enabling the transmission of signals over long distances with greater accuracy and efficiency. Initially, the Yagi-Uda antenna was primarily used for radio communication, but its applications have since expanded to include television broadcasting and wireless networking. Over the years, the Yagi antenna has undergone numerous improvements and modifications, leading to the development of various designs tailored for specific applications. Despite these advancements, the fundamental principles of the Yagi antenna remain the same, underscoring its enduring relevance and effectiveness.

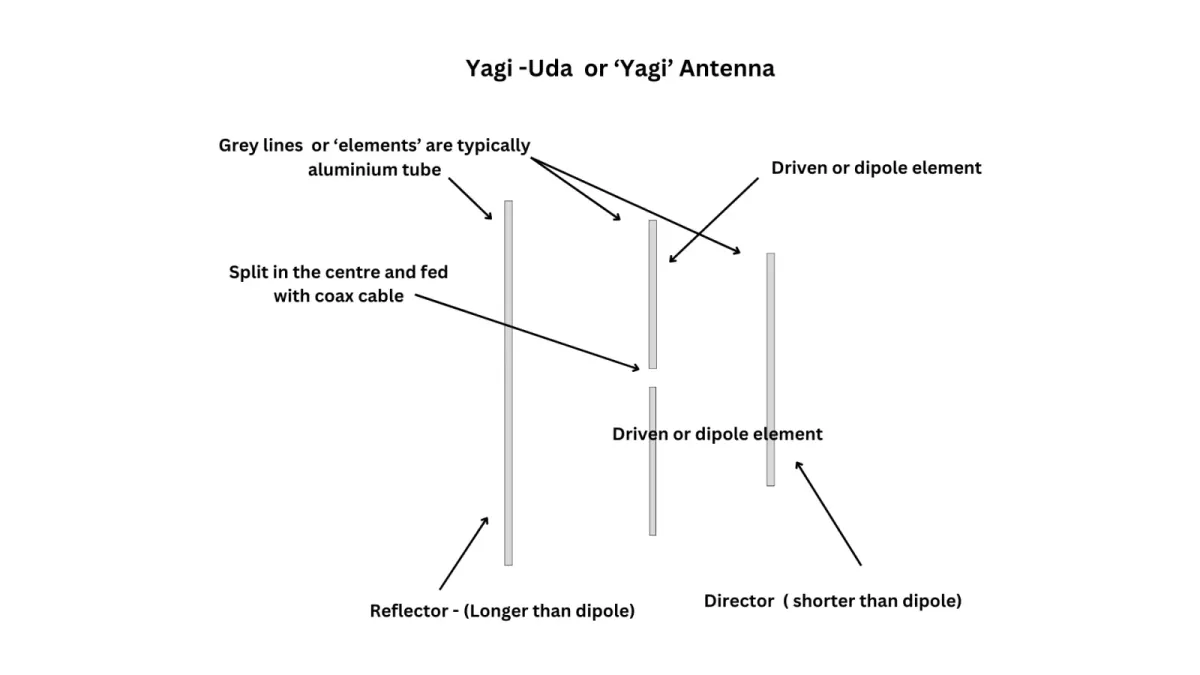

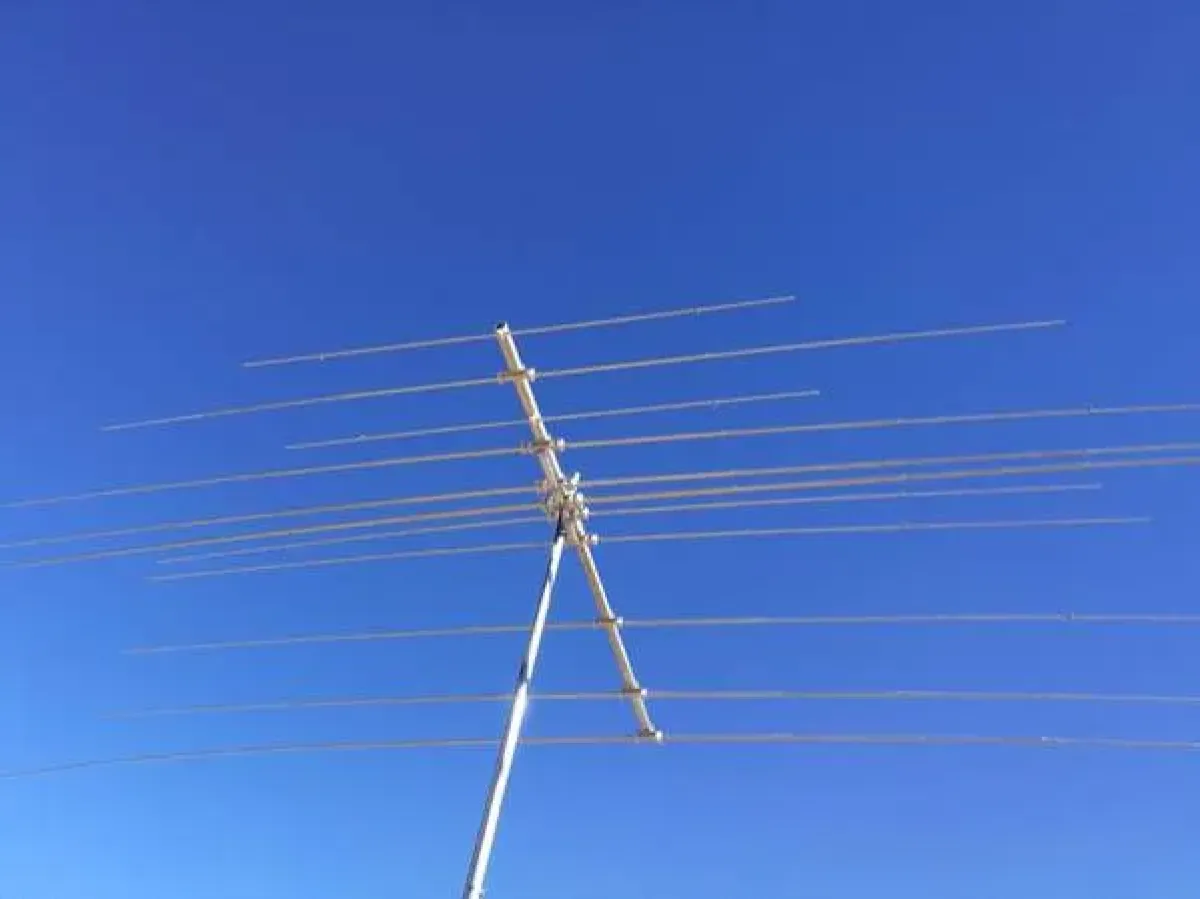

Components of a Yagi Antenna

The Yagi antenna’s effectiveness lies in the interplay between its components, which are mounted along a central boom aligned with the antenna axis. These include the driven element, the reflector, and one or more directors. Each component plays a specific role in shaping the antenna’s radiation pattern, gain, and impedance.

1. The Driven Element

The driven element is the heart of the Yagi and the only part connected directly to the transmitter or receiver via the feedline. It is typically a dipole resonant at half the wavelength of the operating frequency. At resonance, it efficiently transfers RF energy between the feedline and the antenna, minimizing energy loss.

The impedance at the feed point of the driven element is critical. While 50-ohm feedlines are common, the impedance of the driven element alone can range from 10 to 40 ohms, depending on the design. To achieve efficient power transfer and avoid standing wave ratio (SWR) issues, impedance-matching devices, such as gamma matches or baluns, are often employed.

2. The Reflector

Located behind the driven element, the reflector is typically about 5% longer than the driven element. Its role is to "reflect" RF energy forward, reinforcing the directional pattern of the antenna. By carefully spacing the reflector (usually 0.1 to 0.25 wavelengths from the driven element), designers can optimize the antenna's front-to-back ratio, ensuring that signals from the rear are suppressed while maximizing forward gain.

3. The Directors

Directors are shorter than the driven element, with lengths progressively decreasing as more are added. Positioned in front of the driven element, they focus RF energy into a narrow beam, increasing the antenna's forward gain. The spacing and number of directors significantly influence the Yagi's performance:

- Gain: Adding directors increases gain but has diminishing returns after a certain point.

- Beamwidth: Directors narrow the main lobe of the radiation pattern, improving directionality.

- Bandwidth: Wider spacing of directors enhances bandwidth but may reduce gain and increase sidelobes.

The Boom

The boom is the structural backbone of the Yagi, holding all elements in precise alignment. While it does not contribute directly to RF performance, its material and design can affect overall weight, wind resistance, and mechanical stability.

How a Yagi Antenna Works

When an RF signal is fed into the driven element, it induces currents in the parasitic elements (reflector and directors). These currents interact with the transmitted or received signal to shape the Yagi’s radiation pattern. Here’s how:

• Reflector: Redirects energy forward by creating a phase-shifted wave that reinforces the main signal.
• Directors: Act as lenses, focusing the RF energy into a narrower, more concentrated beam.

This interaction creates a highly directional antenna with increased forward gain and reduced side and rear lobes. The result is stronger signals in the desired direction and improved signal-to-noise ratio, ideal for long-distance communication (DXing) and urban environments with high interference. Yagi-Uda antennas are known for their efficiency in enhancing signal reception and transmission in specific directions.

Types of Directional Antennas

Directional antennas are designed to transmit and receive signals in a specific direction, thereby increasing signal strength and quality. Among the various types of directional antennas, Yagi antennas are the most common and widely used due to their simplicity, cost-effectiveness, and ease of installation. Yagi antennas consist of a driven element, a reflector, and one or more directors, which work together to focus the signal in a particular direction. Other types of directional antennas include parabolic antennas and horn antennas. Parabolic antennas, often used in satellite communications, offer higher gain and more precise directionality but are more complex and expensive. Horn antennas, commonly used in microwave applications, also provide high gain and precise directionality but require more intricate design and installation. Each type of directional antenna has its own set of advantages and disadvantages, making them suitable for different applications and environments.

Impedance Matching and Feeding the Yagi

In the days before sophisticated modeling and optimization software, impedance matching devices were a necessity. However, like anything else known to science, no method of transforming anything is 100% efficient, so there will always be some loss. With modern software capabilities, there is no reason for modern Yagi designs to require matching devices. The software can be used to optimize the Yagi with the desired impedance, be it 50 ohms, 75 ohms, or other.

Matching the antenna's impedance to the feedline is crucial for efficient operation. The feedline's impedance (usually 50 ohms) must match the feed point impedance of the driven element. To achieve this, Yagi designs often incorporate impedance-matching devices:

- Gamma Match: A simple, reliable system that adjusts the feed point impedance without splitting the driven element.

- T-Match: Similar to a gamma match but symmetrical, offering balanced operation.

- Baluns: Convert between balanced and unbalanced systems, ensuring proper RF energy transfer while minimizing signal loss.

Proper matching ensures maximum power transfer, reduces reflected power (SWR), and widens the antenna's usable bandwidth.

Pattern and Performance Characteristics

The Yagi antenna’s radiation pattern is characterized by its directional gain, front-to-back ratio, and beamwidth:

• Directional Gain: Measures how effectively the antenna concentrates RF energy in a specific direction. Adding directors increases gain.
• Front-to-Back Ratio: The strength of signals in the forward direction compared to the rear. A high front-to-back ratio minimizes interference.
• Beamwidth: The width of the main lobe in the radiation pattern. Narrower beams offer better directionality but require precise aiming.

Designers balance these attributes by adjusting element lengths, spacing, and boom length. Trade-offs, such as sacrificing some gain for improved bandwidth, are common in practical designs. Yagi antennas are also effective in enhancing cell signal reception in areas with weak outside signals.

Installation and Testing of Yagi Antennas

Installing and testing a Yagi antenna requires careful planning and attention to detail to ensure optimal performance. The antenna should be installed in a location with minimal obstructions and interference, ideally elevated and clear of nearby structures. It should be pointed in the direction of the signal source to maximize reception or transmission. Secure mounting and proper grounding are essential to prevent damage from lightning strikes and power surges. Once installed, testing the Yagi antenna involves measuring the signal strength and quality using appropriate equipment. Adjustments to the antenna’s position and orientation may be necessary to achieve the best performance. Additionally, ensuring that the antenna is properly matched to the transmitter or receiver is crucial for maximizing efficiency and minimizing signal loss. This involves checking the impedance and using matching devices if necessary to achieve the desired impedance, typically 50 ohms. Proper installation and testing can significantly enhance the performance of a Yagi antenna, making it a powerful tool for effective communication.

What is a Yagi Antenna: Modern Innovations for Suburban Use

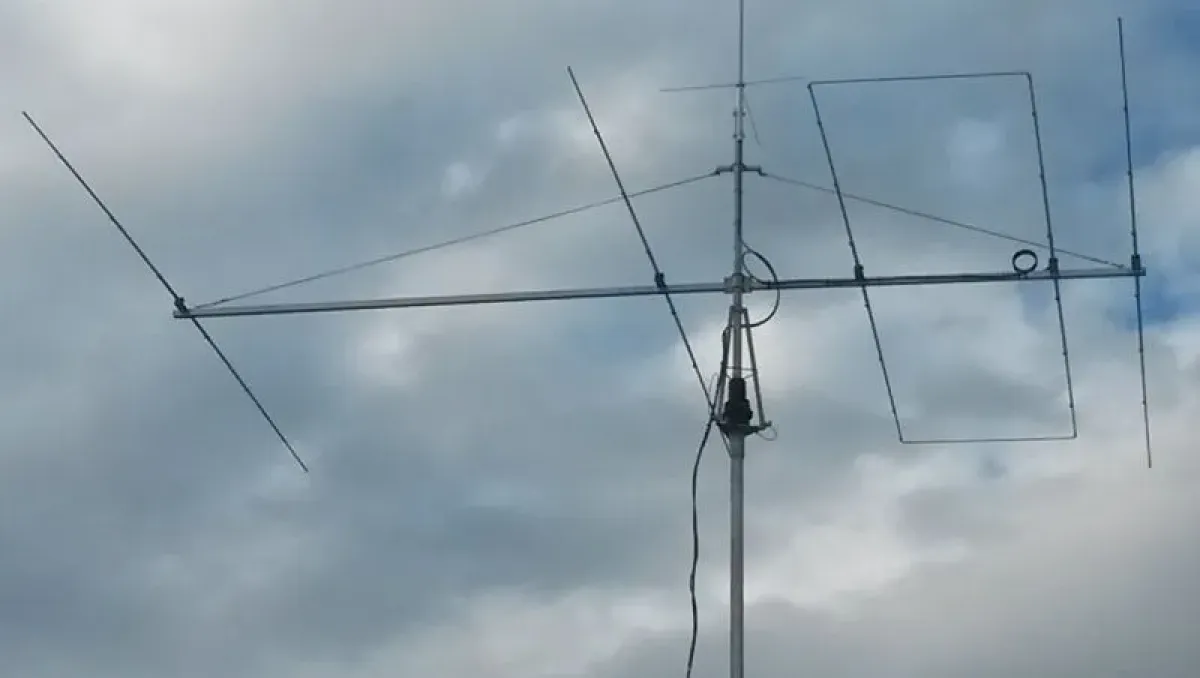

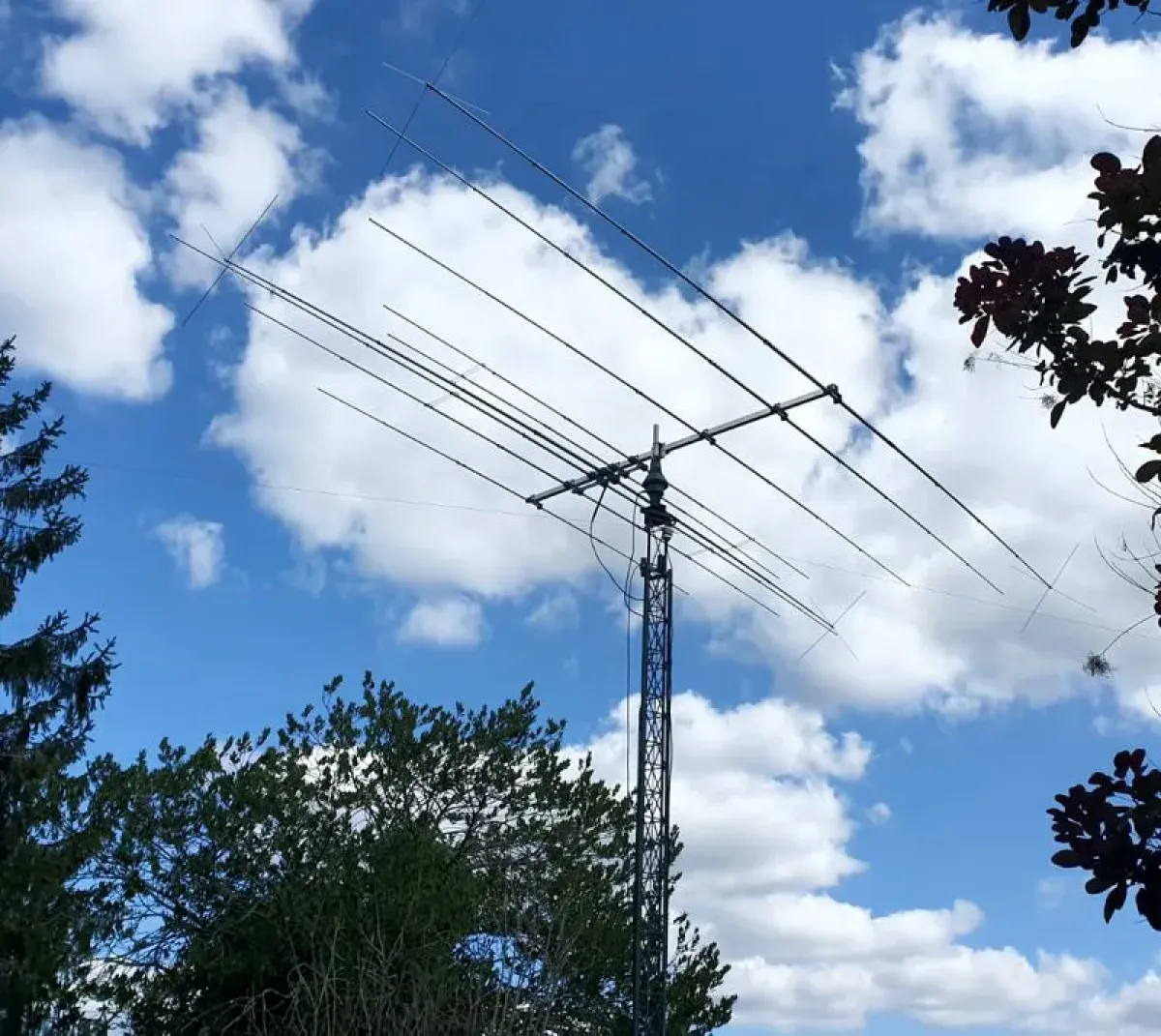

InnovAntennas has refined the traditional Yagi to address challenges in suburban environments, where noise and space constraints are common. Their designs, such as the LFA (Loop Fed Array) and OP-DES (Optimized Design for Efficient Stacking), use advanced techniques to:

InnovAntennas, led by antenna innovator Justin Johnson G0KSC, has developed several modern, low noise Yagi designs, including the LFA (Loop Fed Array), OP-DES (Optimized Design for Efficient Stacking), and OWL Yagis. These designs are often referred to as ‘low noise Yagis’ because they were specifically designed with signal-to-noise ratio in mind, making them ideal for suburban environments where city noise can be a significant problem. The LFA Yagi, for example, uses a loop-fed driven element to minimize unwanted noise and interference, while the OP-DES Yagi optimizes the gain and reduces sidelobes for better performance in noisy environments. The OWL Yagis incorporate similar techniques, offering a balance of high gain, compact design, and reduced noise levels. These designs utilize antenna arrays to enhance signal directionality and efficiency by arranging both radiating and parasitic elements effectively.

These innovations, spearheaded by Justin Johnson, are particularly beneficial for amateur radio operators in urban and suburban settings, helping to reduce the effects of man-made noise that can degrade signal quality. By using sophisticated modeling software, Johnson has been able to eliminate the need for traditional impedance-matching devices, ensuring that these Yagis are optimized for the desired impedance, whether it’s 50 ohms, 75 ohms, or another value. This approach not only enhances efficiency but also reduces potential power loss from impedance transformations.

• Minimize noise and unwanted sidelobes.
• Optimize gain and pattern control.
• Fit within compact spaces while maintaining high performance.

What is a Yagi Uda Antenna?

A Yagi Uda antenna, commonly known as a Yagi antenna, is a type of directional antenna that is designed to enhance the reception and transmission of signals in a specific direction. This antenna consists of three main components: a driven element, a reflector, and one or more directors. The driven element is the part of the antenna that is directly connected to the transmitter or receiver. The reflector element is placed behind the driven element to bounce signals back towards it, while the directors, also known as parasitic elements, are positioned in front of the driven element to focus the signal in a particular direction. Invented in the 1920s by Japanese engineers Hidetsugu Yagi and Shintaro Uda, the Yagi Uda antenna has become a staple in television reception, radio communication, and wireless networking due to its ability to transmit signals efficiently over long distances.

Benefits of Yagi Antennas

Yagi antennas offer several advantages over other types of antennas, making them a popular choice for various applications. One of the primary benefits is their directional nature, which allows them to focus signal strength in a single direction, thereby enhancing both reception and transmission. This makes Yagi antennas particularly effective in areas with weak signal coverage, such as suburban or rural regions. Additionally, Yagi antennas are relatively simple and easy to use, requiring minimal setup and maintenance. Yagi antenna used in devices like television broadcasts, dual-band radios, and 2-way communication systems are widely recognized for their ability to direct and amplify signals, enabling improved reception and communication over long distances. For instance, a Yagi antenna can significantly boost a WiFi signal, ensuring better connectivity even in challenging environments.

Applications of Yagi Antennas

Yagi antennas are incredibly versatile and find applications in a wide range of fields. In television broadcasting, they are used to receive over-the-air signals, providing clear and reliable reception. In radio communication, Yagi antennas are employed by amateur radio operators and CB radio enthusiasts to enhance signal clarity and reach. They are also crucial in wireless networking, where they help improve the range and reliability of WiFi connections. Beyond these common uses, Yagi antennas are utilized in various industries, including broadcasting, communication, and remote monitoring. For example, they are used in programmable LED road signs to ensure consistent signal transmission and in remote monitoring stations to maintain reliable communication links.

Future Developments

The future of Yagi antennas is bright, with ongoing advancements in technology and design promising to enhance their performance and efficiency. Researchers are exploring new materials and innovative designs to push the boundaries of what Yagi antennas can achieve. As the demand for wireless communication and broadcasting continues to grow, new Yagi antenna designs are being developed to meet the needs of modern communication systems. With the advent of 5G technology, Yagi antennas are expected to play a pivotal role in providing high-speed and reliable communication services. These advancements will not only improve the performance of Yagi antennas but also expand their applications, making them an even more valuable tool in the world of communication.

Conclusion: How a Yagi Antenna Works

In conclusion, selecting the right Yagi antenna for modern amateur radio involves looking for designs that do not require traditional impedance-matching devices. By utilizing advanced modeling and optimization software, designers can create Yagis that offer the desired impedance directly, which improves overall efficiency and reduces power loss. Modern low noise Yagi designs, such as the LFA, OP-DES, and OWL Yagis developed by Justin Johnson G0KSC of InnovAntennas Limited, are particularly effective in minimizing noise levels and enhancing signal clarity. These designs, often featuring a closed loop feed, are ideal for low noise applications and are well-suited for suburban environments where reducing city noise is crucial. With these advancements, even entry-level hams can achieve professional-grade results, ensuring that the Yagi antenna remains a powerful and relevant tool for effective communication.

These innovations allow even entry-level hams to achieve professional-grade results, demonstrating the enduring relevance of the Yagi antenna in modern amateur radio.
