6m Antennas.

The Magic Band — 50 MHz sporadic-E, TEP and solar-peak F2 built InnovAntennas' name, and the 6m LFA remains the reference low-noise Yagi.

9 models · datasheets & dealer routing

They call 6m the Magic Band for a reason: 50 MHz can sit dead for days and then, in the space of minutes, open across an ocean. Summer sporadic-E seasons bring intense short-skip and multi-hop openings; around solar maximum, genuine F2 propagation appears; and between the two sit trans-equatorial paths and meteor scatter for the operators who know where to listen. No other band swings so hard between silence and spectacle.

The 6m band is where the LFA earned its reputation. G0KSC's closed-loop driven element was proven here — because on 50 MHz, openings are dug out of the local noise floor, and the LFA's rejection of off-axis and man-made noise routinely hears workable DX that a conventionally fed Yagi buries in hash. The direct 50 Ω feed, with no matching device to detune, holds that performance in real weather on real towers.

The 6m range is the deepest we make: from compact three-element designs for Es seasons to long-boom seven- and eight-element arrays for serious EME and weak-signal work.

Band
Buy from
9 models

Filters // full datasheet

Antenna type
Connector
Polarization
Gain (dBi)
Power rating (W)
Elements

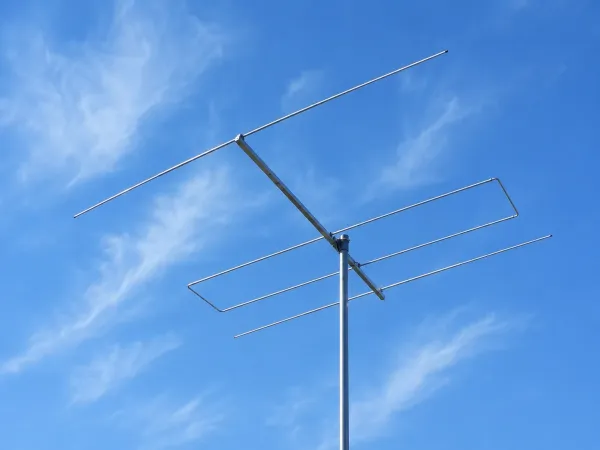

50MHz 3-Element Low Noise LFA Yagi Dealer network

18485.0036 · LFA

50MHz 3-Element Low Noise LFA Yagi

Gain 8.92 dBi
Elements 3
Boom 2.14 m
Power 5 kW
6m
Via authorised dealers View
50MHz 4-Element 50 MHz Low Noise Yagi Dealer network

18485-0039 · LFA

50MHz 4-Element 50 MHz Low Noise Yagi

Gain 9.4 dBi
Elements 4
Boom 3.4 m
Power 5 kW
6m
Via authorised dealers View
50MHz 5-Element LFA Low Noise Yagi Dealer network

LFA-50-5-VR · LFA

50MHz 5-Element LFA Low Noise Yagi

Gain 10.6 dBi
Elements 5
Boom 4.4 m
Power 5 kW
6m
Via authorised dealers View
50MHz 5-Element OP-DES Wide Band Yagi Dealer network

18485-0041 · OP-DES

50MHz 5-Element OP-DES Wide Band Yagi

Gain 9.2 dBi
Elements 5
Boom 2.64 m
Power 5 kW
6m
Via authorised dealers View
50MHz 6-Element LFA3 Low Noise Yagi Dealer network

18485-0047 · LFA

50MHz 6-Element LFA3 Low Noise Yagi

Gain 12 dBi
Elements 6
Boom 6.83 m
Power 5 kW
6m
Via authorised dealers View

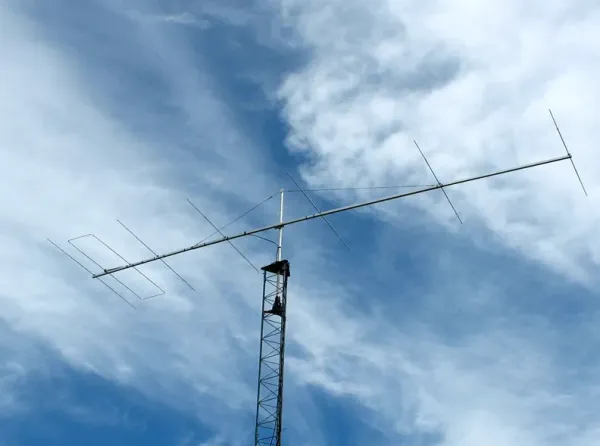

50MHz 7-Element LFA-HD Low Noise High Performance Yagi Dealer network

18485-0052 · LFA

50MHz 7-Element LFA-HD Low Noise High Performance Yagi

Gain 12.85 dBi
Elements 7
Boom 8.9 m
Power 5 kW
6m
Via authorised dealers View
LFA-HG 50MHz 5-Element Low Noise Yagi Dealer network

18485-0042 · LFA

LFA-HG 50MHz 5-Element Low Noise Yagi

Gain 10.7 dBi
Elements 5
Boom 3.9 m
Power 5 kW
6m
Via authorised dealers View
XR Series Multi-Band HF Beams XR6 - DXR6 in North America Dealer network

18480.XR6 · Multi-band

XR Series Multi-Band HF Beams XR6 - DXR6 in North America

Gain 6 dBi
Elements 11
Boom 3.6 m
Power 5 kW
17m 15m 12m 10m 6m 20m
Via authorised dealers View
XR Series Multi-Band HF Beams XR6C - DXR6C in North America  Dealer network

18480.XR6C · Multi-band

XR Series Multi-Band HF Beams XR6C - DXR6C in North America

Gain 6 dBi
Elements 11
Boom 3.6 m
Power 5 kW
17m 15m 10m 12m 6m 20m
Via authorised dealers View
