InnovAntennas

LFA-50-5-VR · LFA

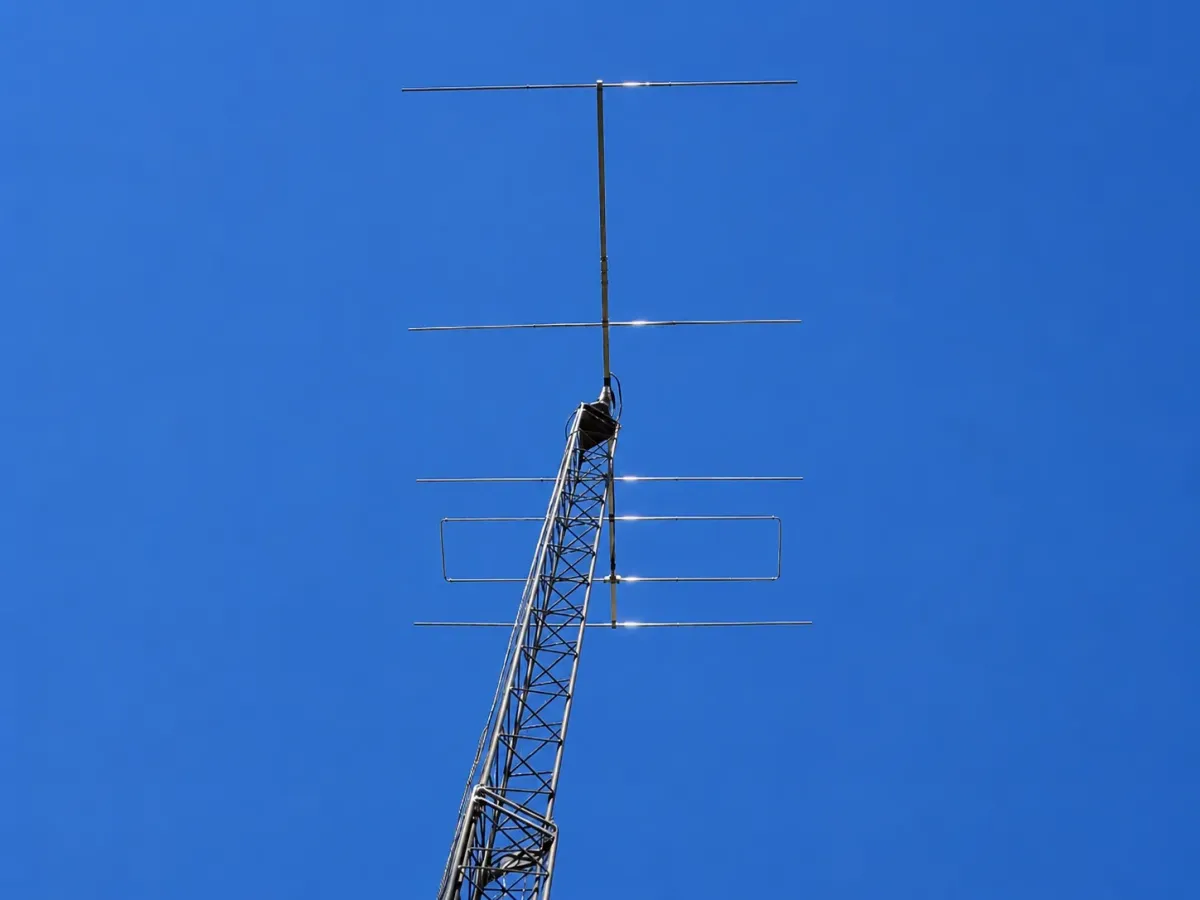

6m 5-element LFA Yagi.

G0KSC's signature designs — engineered for serious DX work on the 6-metre band. These are the antennas that put G0KSC on the map. For over two decades, G0KSC low-noise Yagis have been the aerial of choice for operators chasing weak-signal DX on 50MHz — from transatlantic openings to sporadic-E marathon sessions. You'll find them atop contest stations and DXpeditions worldwide, and for good reason: the pattern design prioritises signal-to-noise ratio above raw forward gain, which is what actually matters when you're pulling a barely-readable signal out of the noise floor.

Gain 10.6 dBi / 8.45 dBd
Elements 5
Power 5 kW
Bands 6m

Datasheet // full specification

LFA-50-5-VR

Core

Antenna Type LFA
Bands 6m
Gain 10.6 dBi / 8.45 dBd
Elements 5
F/B Ratio 30.5 dB
Power Rating 5 kW

Physical

Boom Length 4.4 m / 14.44 ft
Weight 8 kg / 17.64 lb
Wind Survival 100 mph (160.9 km/h)
Turning Radius 2.6 m / 8.53 ft
Longest Element 2.82 m / 9.25 ft
Mast Diameter 50 mm
Stacking Distance (Vertical) 4.4 m / 14.44 ft
Stacking Distance (Horizontal) 4.8 m / 15.75 ft

Electrical

Connector Direct/pigtail
Polarization Horizontal
VSWR (max) ≤ 1.5:1
Impedance 50 Ω
Beamwidth 47°
